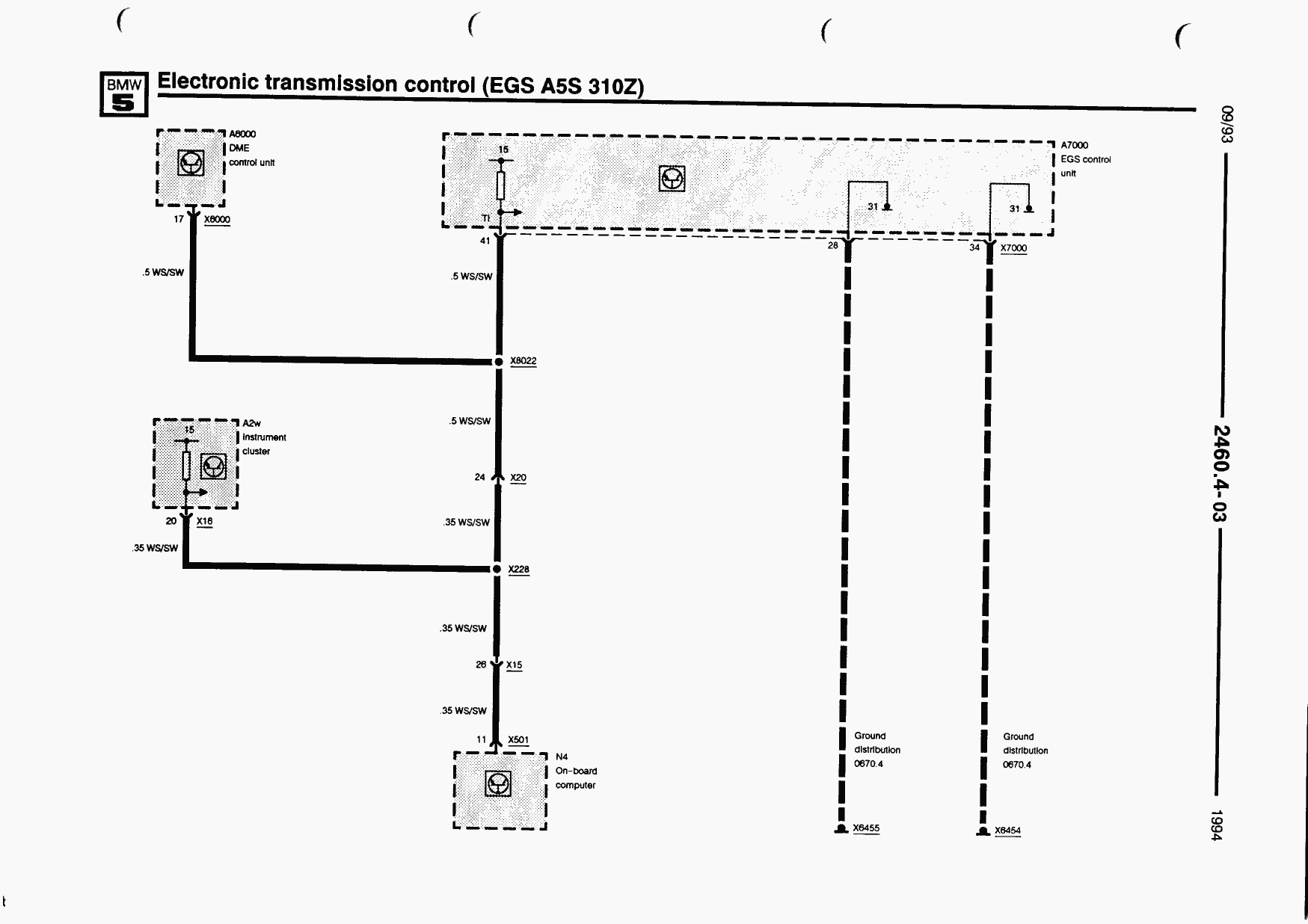

| Pin | Type | Description/Function | Connection
|
| 1 | | not used |
|
| 2 | | not used |
|
| 3 | A | Solenoid valve 5 | Gearshift unit
|
| 4 | A | Solenoid valve, converter clutch | Gearshift unit
|
| 5 | A | Pressure regulator (+) | Gearshift unit
|
| 6 | | not used |
|
| 7 | | not used |
|
| 8 | E | Position switch L2 | Selector lever switch
|
| 9 | E | Position switch L4 | Selector lever switch
|
| 10 | | not used |
|
| 11 | | not used |
|
| 12 | E/A | L5 S program | Program switch
|
| 13 | E/A | L7 * program | Program switch
|
| 14 | E | Speed sensor n-ab (-) | Gearshift unit
|
| 15 | A | Shield speed sensor n-ab/n-turbine | Speed sensor
|
| 16 | E | Speed sensor n-turbine (+) web speed | Gearshift unit
|
| 17 | | not used |
|
| 18 | E | Kick-down | Kick-down switch
|
| 19 | | not used |
|
| 20 | | not used |
|
| 21 | M | Ground, oil-temperature sensor | Gearshift unit
|
| 22 | E | Oil temperature sensor NIC | Gearshift unit
|
| 23 | | not used |
|
| 24 | | not used |
|
| 25 | A | Fault indicator | Instrument cluster
|
| 26 | E | Terminal 30 | B+ interpolation point
|
| 27 | | not used |
|
| 28 | M | Electronics ground | Ground connection
|
| 29 | | not used |
|
| 30 | A | Solenoid valve 1 | Gearshift unit
|
| 31 | A | Solenoid valve 4 | Gearshift unit
|
| 32 | A | Solenoid valve 3 | Gearshift unit
|
| 33 | A | Solenoid valve 2 | Gearshift unit
|
| 34 | M | Power ground | Ground connection
|
| 35 | E | Throttle-valve signal interface | DME control unit
|
| 36 | E | Position switch L1 | Selector lever switch
|
| 37 | E | Position switch L3 | Selector lever switch
|
| 38 | | not used
|
| 39 | | not used
|
| 40 | A | Engine intervention | DME control unit
|
| 41 | E | Fuel consumption indicator (ti signal) | DME control unit
|
| 42 | E | Speed sensor n-ab (+)
|
| 43 | E | Engine speed n-mot (TD* signal) | DME control unit
|
| 44 | E | Speed sensor n-turbine (-) | Gearshift unit
|
| 45 | E | L6 E program | Program switch, instrument cluster
|
| 46 | | not used
|
| 47 | | not used
|
| 48 | | not used
|
| 49 | | not used
|
| 50 | | not used
|
| 51 | | not used
|
| 52 | | not used
|
| 53 | A | Positive supply, solenoid valves | Gearshift unit
|
| 54 | E | Voltage supply | DME relay
|
| 55 | | not used
|
| 56 | | not used
|
| 57 | | not used
|
| 58 | | not used
|
| 59 | | not used
|
| 60 | | not used
|
| 61 | | not used
|
| 62 | | not used
|
| 63 | | not used
|
| 64 | | not used
|
| 65 | | not used
|
| 66 | | not used
|
| 67 | | not used
|
| 68 | | not used
|
| 69 | | not used
|
| 70 | | not used
|
| 71 | | not used
|
| 72 | | not used
|
| 73 | | not used
|
| 74 | | not used
|
| 75 | | not used
|
| 76 | | not used
|
| 77 | | not used
|
| 78 | | not used
|
| 79 | | not used
|
| 80 | | not used
|
| 81 | | not used
|
| 82 | | not used
|
| 83 | | not used
|
| 84 | | not used
|
| 85 | | not used
|
| 86 | | not used
|
| 87 | E | RxD diagnosis line | Diagnostic connector
|
| 88 | E/A | TxD diagnosis line | Diagnostic connector
|
