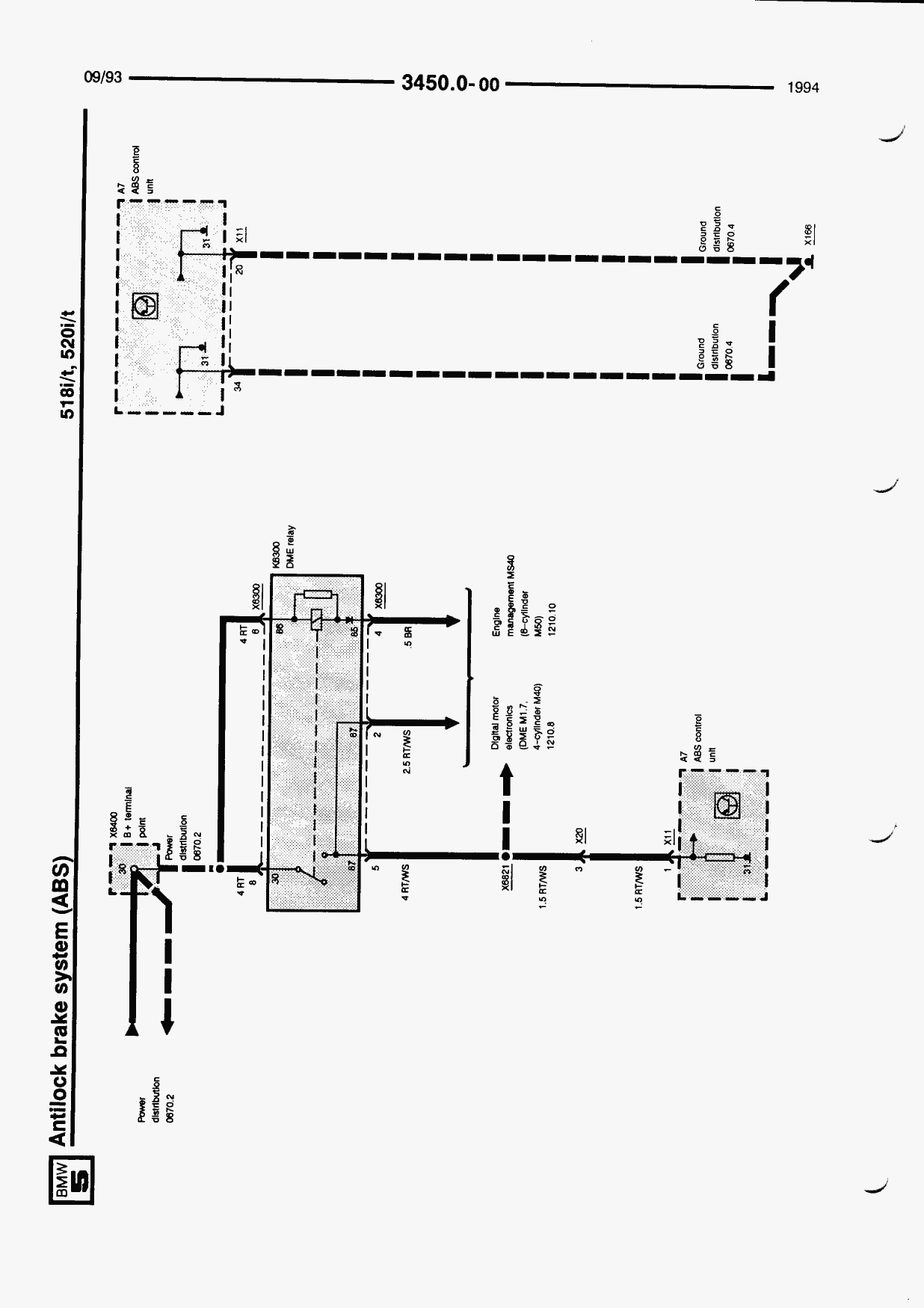

| Pin | Type | Description/Function | Connection
|
| 1 | E | Voltage supply | DME relay/DDE relay
|
| 2 | M | Component ground | ABS hydraulic unit - front left solenoid valve
|
| 3 | | not used |
|
| 4 | M | Component ground | Front left ABS sensor
|
| 5 | | not used |
|
| 6 | E | Voltage signal | Front left ABS sensor
|
| 7 | | not used |
|
| 8 | E | Voltage signal | Rear left ABS sensor
|
| 9 | M | Component ground | Rear left ABS sensor
|
| 10 | | not used |
|
| 11 | E | Voltage signal | Front right ABS sensor
|
| 12 | | not used |
|
| 13 | | not used |
|
| 14 | E | Voltage supply | Terminal 87 pump relay
|
| 15 | | not used |
|
| 16 | | not used |
|
| 17 | A | Relay activation | Terminal 86 pump relay
|
| 18 | M | Component ground | ABS hydraulic unit - rear solenoid valve
|
| 19 | | not used |
|
| 20 | M | Component ground | Ground connection
|
| 21 | M | Component ground | Front right ABS sensor
|
| 22 | | not used |
|
| 23 | | not used |
|
| 24 | E | Voltage signal | Rear right ABS sensor
|
| 25 | M | Component ground | Brake light switch
|
| 26 | M | Component ground | Rear right ABS sensor
|
| 27 | M | Component ground | Terminal 85 valve relay
|
| 28 | M | Component ground | Terminal 85 Pump relay
|
| 29 | E | Voltage supply | Terminal 87 valve relay
|
| 30 | A | RxD diagnosis line | Diagnostic connector
|
| 31 | E/A | TxD diagnosis line | Diagnostic connector
|
| 32 | E | Voltage supply | Terminal 87 valve relay
|
| 33 | | not used |
|
| 34 | M | Component ground | Ground connection
|
| 35 | M | Component ground | ABS hydraulic unit - front right solenoid valve
|
