Double-panel sunroof (ZKE)

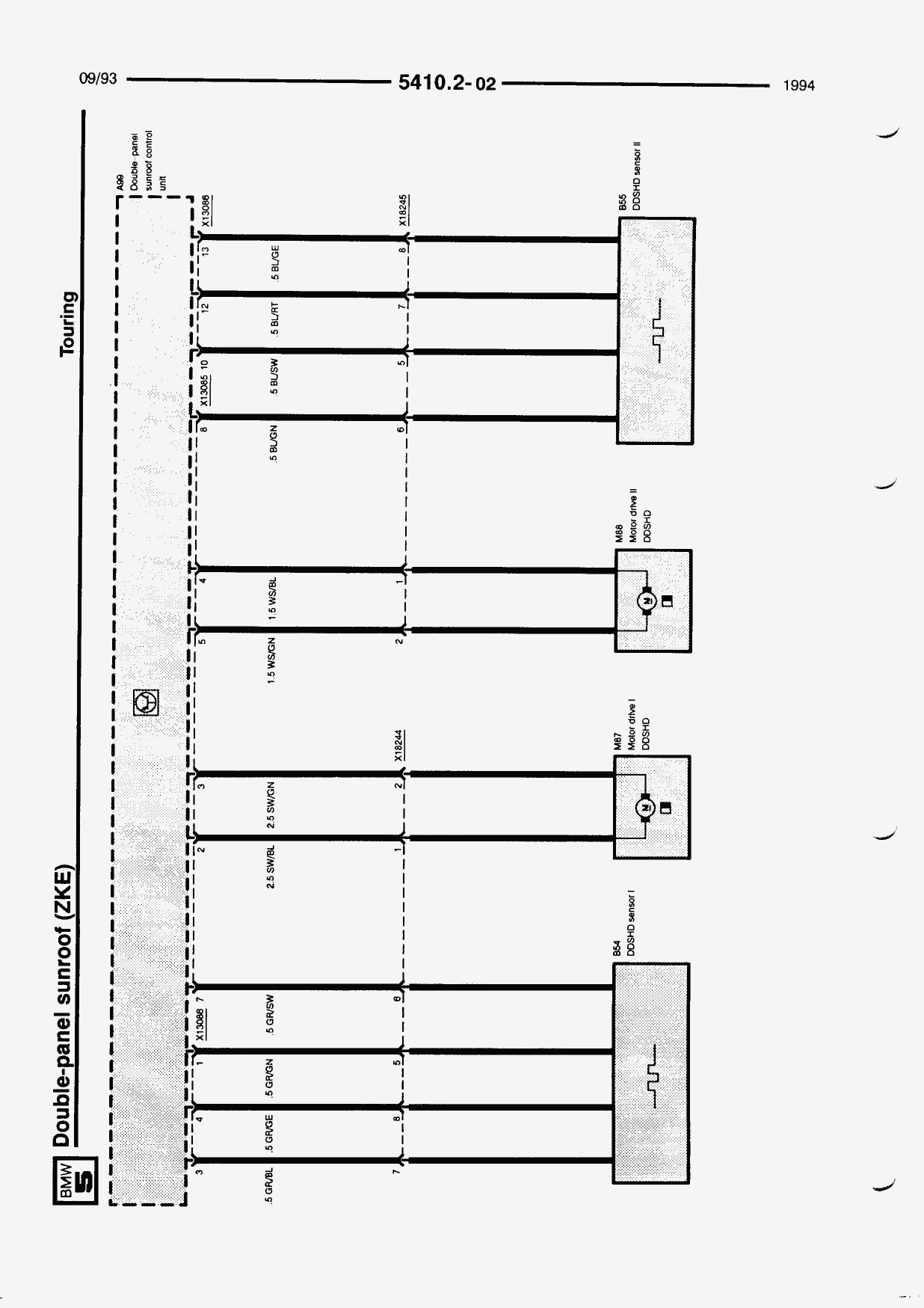

Scheme 5410.2
|
X13085 | 10-pin |
X13086 | 18-pin |
|
Pin | Type | Description/Function | Connection |
1 | E | Voltage terminal 30 | Power distribution box |
2 | M | Ground signal - | Motor - front cover |
3 | A | Component supply + | Motor - front cover |
4 | M | Ground signal - | Motor - rear cover |
5 | A | Component supply + | Motor - rear cover |
6 | M | Control unit ground | Ground connection |
7 | A | Component supply + | Pulse generator - front lid |
8 | A | Component supply + | Pulse generator - rear lid |
9 | M | Ground | DDSHD switch |
10 | E | Voltage terminal 30 ES | General module |
|
Pin | Type | Description/Function | Connection |
1 | E | Position signal | Pulse generator - front lid |
2 | not used | ||
3 | E | Position signal | Pulse generator - front lid |
4 | E | Position signal | Pulse generator - front lid |
5 | not used | ||
6 | E | Control signal | Relay module |
7 | A | RxD signal | Diagnostic connector |
8 | E | Switch closed | DDSHD switch |
9 | E | Switch closed | DDSHD switch |
10 | E | Position signal | Pulse generator - rear lid |
11 | not used | ||
12 | E | Position signal | Pulse generator - rear lid |
13 | E | Position signal | Pulse generator - rear lid |
14 | not used | ||
15 | E/A | TxD signal | Diagnostic connector |
16 | E | MSD+ | Relay module |
17 | E | Switch closed | DDSHD switch |
18 | not used |
