| Solder connector | Wire harness | Side
|

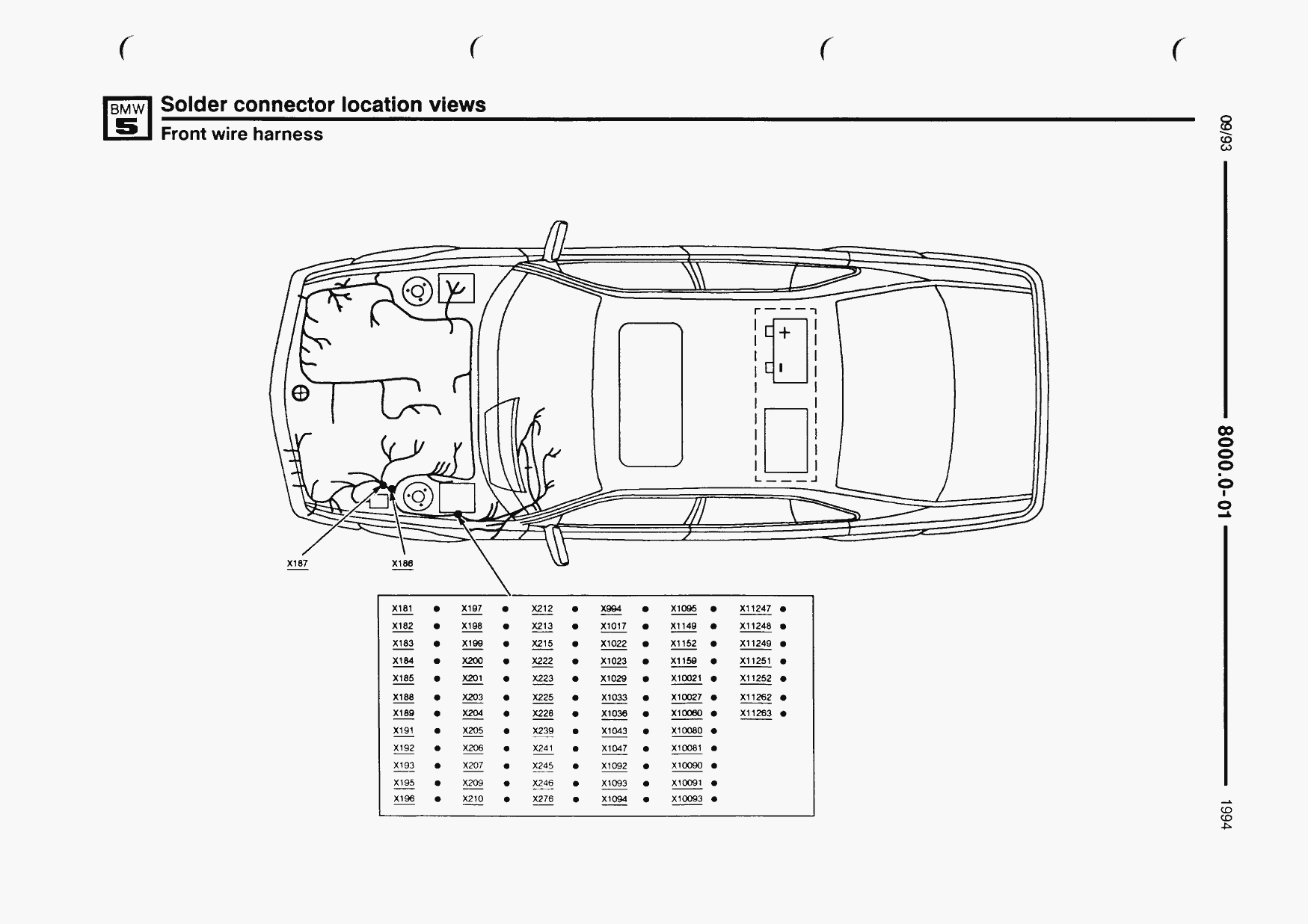

| X181-X207 | Front | 8000.0-01
|

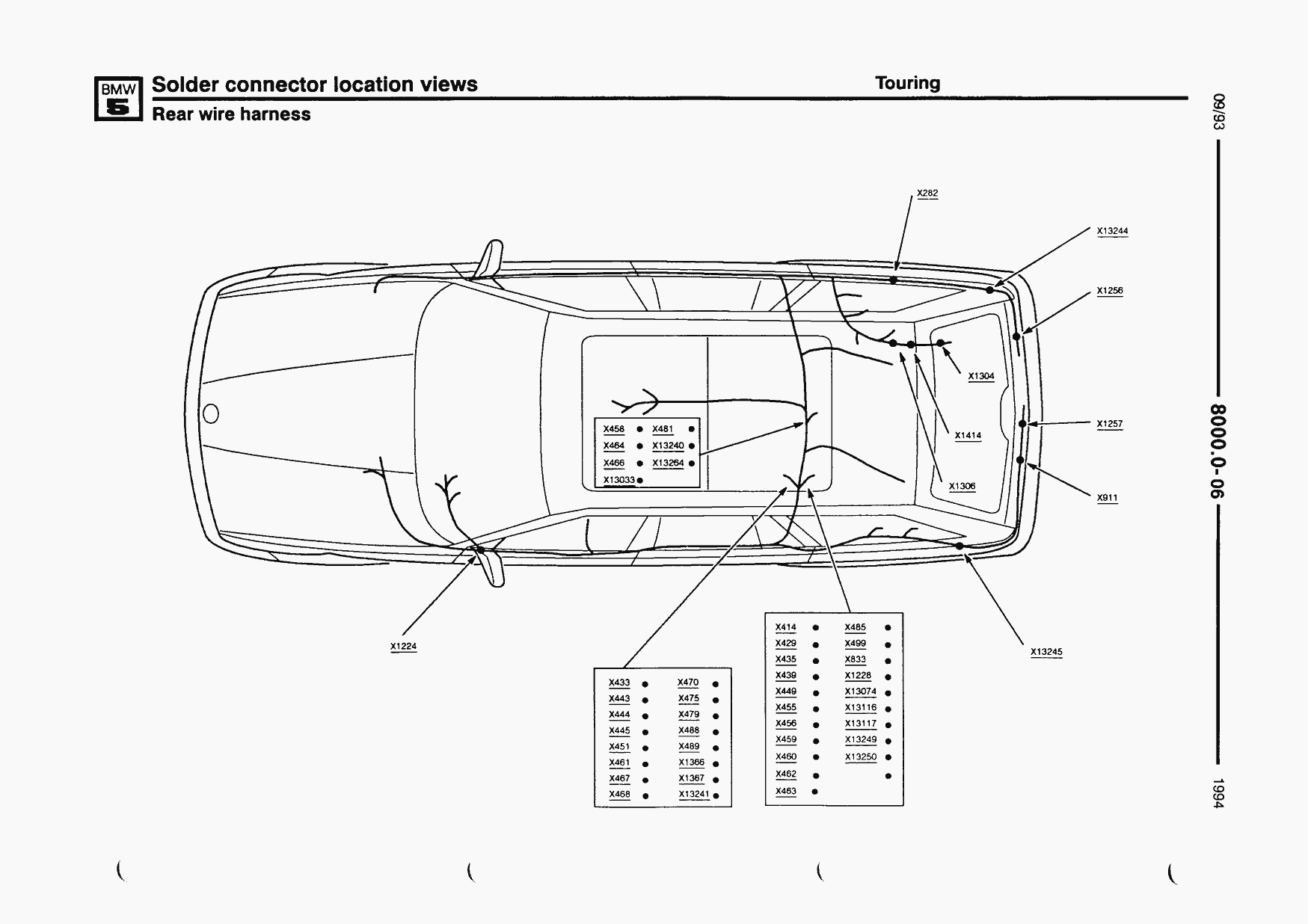

| X208 | Rear | 8000.0-03 8000.0-06
|
| X209-X276 | Front | 8000.0-01
|
| X414-X433 | Rear | 8000.0-03 8000.0-06
|
| X434 | Front | 8000.0-01
|
| X435-X479 | Rear | 8000.0-03 8000.0-06
|
| X530 | Daytime light | No Fig
|
| X557-X594 | Instrument | 8000.0-02
|
| X595 | Daytime light | No Fig
|
| X824 | Side | No Fig
|
| X831 | Sunroof | No Fig
|
| X832 | Trailer adapter module | No Fig
|
| X833 | Rear | 8000.0-03 8000.0-06
|
| X848-X849 | Driver's door | No Fig
|
| X852-X859 | IHKR/IHKA | 8000.0-04
|
| X864 | Independent heating/ventilation | No Fig
|
| X868-X870 | Rear seat headrest | No Fig
|
| X875-X897 | IHRF3 | 8000.0-05
|
| X905 | IHR2 | No Fig
|
| X906 | IHRF3 | 8000.0-05
|
| X918 | Independent heating/ventilation | No Fig
|
| X994-X1095 | Front | 8000.0-01
|
| X1097 | Daytime light | No Fig
|
| X1 149-1 159 | Front | 8000.0-01
|
| X1225 | Instrument | 8000.0-02
|
| X1226-X1362 | Rear | 8000.0-03 8000.0-06
|
| X1382-X1383 | Radio | No Fig
|
| X1402-1460 | Instrument | 8000.0-02
|
| X1813 | Daytime light | No Fig
|
| X1816 | Independent heating/ventilation | No Fig
|
| X2001-X2006 | Diesel engine | No Fig
|
| X2028-X2162 | Diesel engine | No Fig
|
| X6410-X8015 | M40 engine | No Fig
|
| M50 engine | No Fig
|
| X8024 | Rear | 8000.0-03 8000.0-06
|
| X8032 | EGS | No Fig
|
| X8042-X8557 | M50 engine | No Fig
|
| X10021-X11262 | Front | 8000.0-01
|
| X13074-X13259 | Rear | 8000.0-03 8000.0-06
|
| X18147 | Daytime light | No Fig
|
| X18158 | IHKR/F3 | No Fig
|
| X18159-X18164 | IHR2 | No Fig
|
| IHKR/F3 | No Fig
|
| X18240 | Independent heating/ventilation | No Fig
|
